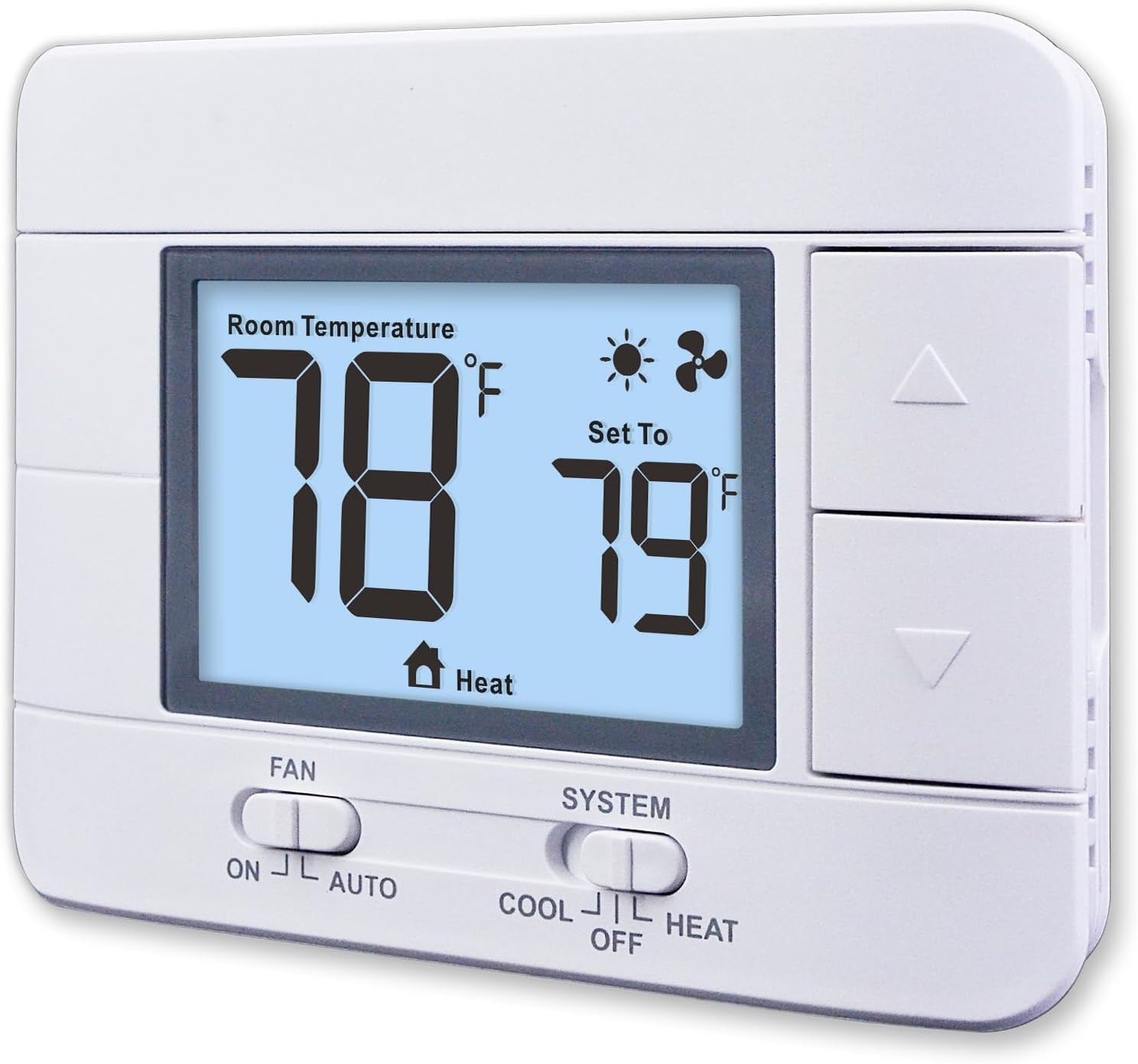

Non Programmable Thermostat

• 【Buyer's Note】Before making a purchase, please ensure that the image and product description match your existing thermostat (verify that the base supports only 2 to 5 wires), and check the dimensions to confirm whether it will cover any wall marks left by the old thermostat.
• 【Thermostat Applications 1H/1C】for with Conventional Single-Stage Heating & Air Conditioning, up to 1 Heat and 1 Cool. and Gas/Oil/Electric Furnace (Heat only) , Boiler Radiant (Heat only), Furnace Forced-Air (Heat Only), Gas Fireplace (24 Volts), Cooling Only, Only 1H/1C Heat Pump (without aux) Systems.
• 【Incompatible Systems】Does not work multistage systems (1H/2C, 2H/2C), HVAC heat pump systems (2H/1C, 4H/2C), PTACs, 3-wire hydronic (hot water), dual fuel/hybrid heating. Does not work line voltage systems (120-240V electric baseboards heat); mini split heat pump air conditioner, RV air conditioners mach and roughneck series.
• Aowel AW701 Nonprogrammable Thermostat for House, Compatible with 24V Conventional Single-Stage Heating & Air Conditioning, up to 1 Heat 1 Cool.
• Simple thermostat, Support separate heat or cool swing setting (range: 0.2°F to 2°F), giving you even greater control over your home temperature.
• Accurate temperature control of +/-2-degree F for consistent comfort.【Room temperature display range: 32°F to 99°F, temperature control range: 44°F to 90°F】
• Support temperature display calibration, Convert °C/°F units, compressor delay protection (selectable on or off). with humidity monitor and battery replacement reminder.
• Dual powered by 24VAC power or 2 AAA batteries, No common wire (c-wire) required on most systems.
• Easy-to see and read, with white backlight, large clear backlit digital display, very suitable for middle-aged and elderly people. Friendly Service: 2-year worry-free warranty and 24h customer service.

The non-programmable digital thermostat for conventional single-stage systems up to 1H/1C, is the perfect addition to your home heating and cooling system. With its large 5.0 sq. in display, you can easily read the temperature and make adjustments according to your comfort level.

This thermostat is designed to work with central gas, oil, and electric furnaces single-stage systems (Tip: does not work multistage systems), making it a versatile option for many homes. It is non-programmable, allowing for simple operation without the need for complicated schedules or settings. This makes it an ideal choice for middle-aged and elderly people who may prefer a more straightforward device.

The thermostat is also equipped with a battery indicator, providing you with convenient maintenance alerts when the battery is low. Additionally, it features 3-minute compressor delay protection, ensuring safe and reliable use.

With separate heating and cooling swing settings, you can customize your preferred temperature levels and achieve optimal comfort. The thermostat also offers temperature calibration, allowing you to fine-tune the device to your liking.

Overall, this non-programmable digital thermostat is a reliable and user-friendly option for households in need of a simple and effective temperature control system.

TECHNICIAN SETUP

- Heating Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F

- Cooling Swing (cycle rate or differential): is adjustable from 0.2°F to 2.0°F

- Temperature Calibration --- (is adjustable from -4°F to +4°F)

- Fahrenheit/Celsius Display --- (selectable °F or °C)

- 3 Minutes Compressor Delay --- (selectable on or off)

- Display Humidity --- (selectable on or off)

The display range of temperature.........32°F to 99°F(0°C to 50°C)

Setpoint Temperature Range...................44°F to 90°F(7°C to 32°C)

Display accuracy of temperature .............±1°F

The display range of humidity..................10%RH to 99%RH

Display accuracy of humidity ....................±5%RH(30%~80%RH), other ±8%RH

Operating ambient ......................................32°F to +105°F (0°C to +41°C)

Operating humidity ......................................90% (non-condensing)

For use with Central Gas, Oil, or Electric Furnaces Single-Stage Systems, up to 1 Heat and 1 Cool

- Does Not Work with Multi-Stage Systems

- Does Not Work with Aux Heat Pump Systems

- Does Not Work RV Systems

- Does Not Work 120/240V Electric Baseboard Heat / Line Volt

Features

- Large display and characters are easy to read

- Simple menu and big buttons for easy operation

- Fan switch with ON and AUTO functions

- Easy access battery compartment

- Low battery indication

- Easy wire coded terminal blocks

- Separate heating and cooling swing (cycle rate) adjustments

- Separate B & O terminals

- Terminal Designations: RH, RC, G, Y, C, O, B, W

- Universal sub-base, mounts on wall or junction box

- Dimensions of thermostat: 4.92 x 3.74 x 0.98 in (W * H * D)

Terminal labeling reference

RH, (or R, R5, 5 ) ---------------- 24V Power (Heating)

RC -------------------------------- 24V Power (Cooling)

W, ( or W1, 4 ) ------------------- Heating Relay

Y, ( or Y1 ) ----------------------- Cooling Relay

G --------------------------------- Fan Relay

O --- Reversing Valve (for heat pump applications energized in Cool mode)

B ---- Reversing Valve (for heat pumpapplications energized in Heat mode)

C --------------------------------- Common Wire

The C terminal does not have to be connected when the thermostat is powered by batteries.

Package Contents

1 x Digital Thermostat

2 x Screws & Anchors

1 x Installation Manual

1 x Cable Label
